9421-LJ7 - New (S2), See Description

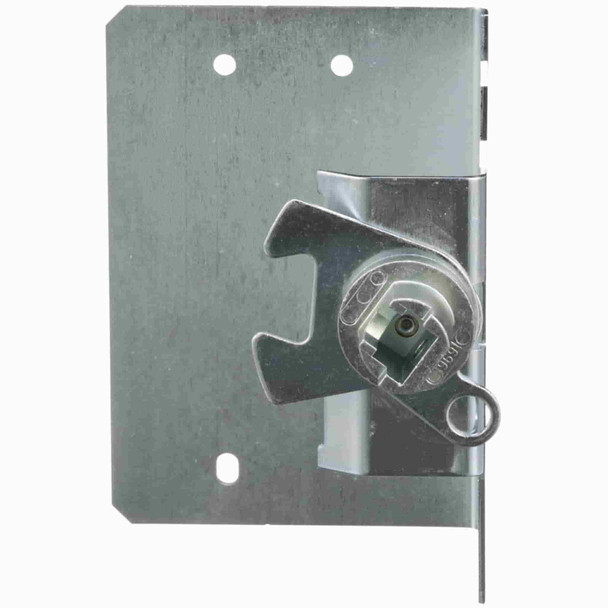

ROTARY OPERATING MECH 600VAC 250 NEMA - Type L rotary operating mechanism manufactured by Square D (Schneider Electric). It is a heavy-duty, all-metal door-mounted device designed for variable depth enclosures, providing reliable operation and trip indication for compatible circuit breakers. It includes a lockout feature for safety when the enclosure door is open or closed, and can be padlocked in the OFF position.

• Type - Type L door-mounted rotary operating mechanism
• Current Rating 125A (compatible up to 250A breakers)
• Voltage Rating - 600 VAC
• Poles Supported - 2 or 3 pole
• Compatible Breakers - PowerPact H, PowerPact J, and Compact NSF series
• NEMA Rating - NEMA 1, 3R, 4, 4X, 5, 12 (enclosure dependent)
• Construction - Heavy-duty all-metal with trip indication
• Additional Features - Variable depth, lockout provision, padlockable in OFF position

** New (S2) - All S2 designated products are new, never used items that will have been repackaged in Service-Asia or custom packaging. These surplus items may not come with manuals or other accessories that would normally be supplied when buying factory new and may be older date codes, firmware, series or style and may sometimes show signs of shelf wear. When purchasing S2 products, please verify series or firmware if applicable. Units will be tested prior to dispatch where necessary.
