Description

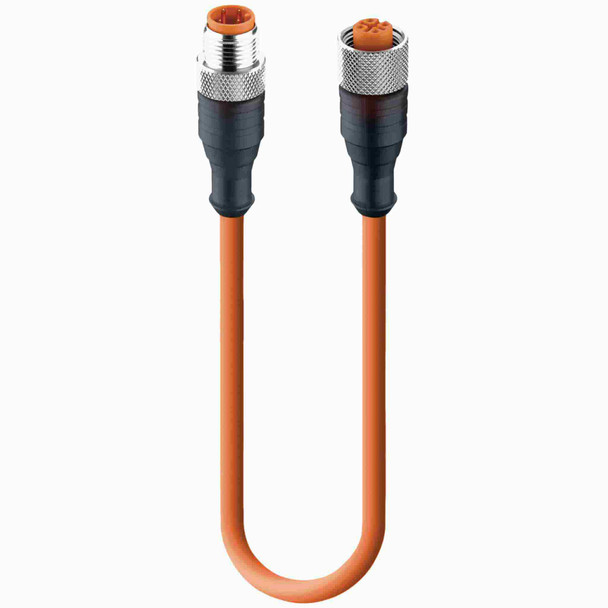

LUMBERG RST4-RKT4-07/5M 5-meter, double-ended actuator/sensor cordset with M12 male straight to female straight connectors, designed for industrial automation. It features a 4-pole, self-locking threaded joint per IEC 61076-2-101, ideal for robust, waterproof connections in harsh environments
- Connector Type: M12 male straight to female straight, 4-pole, self-locking
- Cable Length: 5 meters (16.4 ft)
- Number of Positions/Pins: 4
- Pinout (IEC Color Code): 1: Brown, 2: White, 3: Blue, 4: Black
- Cable Material: PVC (yellow jacket), CuSn contacts (gold over nickel-plated), CuZn coupling nut (nickel-plated), FKM O-ring (female end)
- Cable Gauge: 22 AWG (0.34 mm²)
- Outer Diameter: 4.8 mm (0.190 in)
- Current Rating: 4 A
- Voltage Rating: 250 V
- Degree of Protection: IP67 / NEMA 6P
- Operating Temperature: -40°C to +90°C (-40°F to +194°F)
- Standards: IEC 61076-2-101, RoHS compliant
- Applications: Industrial sensors, actuators, automation, fieldbus systems
** New - These products are new in box, sealed where applicable. Units are covered by 12 month conditional warranty
