MPL-A330P-HK22AA - New (S2), See Description

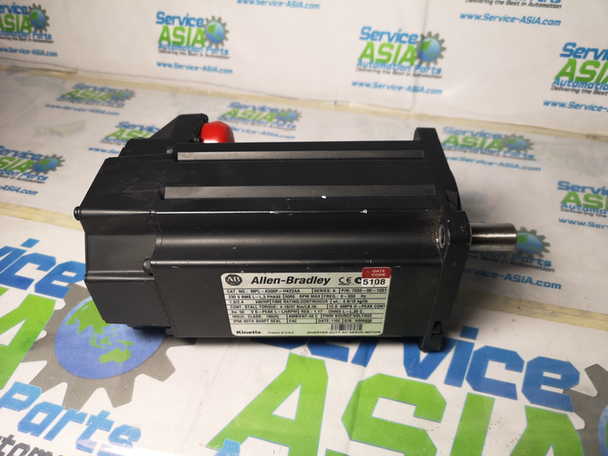

ALLEN-BRADLEY MPL-A330P-HK22AA SER. A SERVO MOTOR RPM: 5000, low-inertia, brushless AC synchronous servo motor from the MP-Series, designed for high-performance motion systems with rapid acceleration and precision.

• Type: Premium permanent magnet rotary servo motor
• Voltage: 230V AC
• Rated Speed: 5000 RPM
• Power Output: 1.8 kW
• Continuous Stall Torque: 4.18 Nm
• Peak Stall Torque: 11.1 Nm
• Continuous Stall Current: 12.0 A
• Peak Stall Current: 98.0 A
• Frame Size: 100 mm
• Magnetic Stack Length: 3 inches
• Feedback: 2000-line incremental encoder
• Connector: Circular bayonet, facing shaft (SpeedTec-ready, IP51 rating)
• Shaft: No key, no seal
• Brake: No brake
• Mounting: IEC metric flange
• Housing: Aluminum, IP51 ingress protection
• Operating Temperature: 0 to 40°C
• Humidity: 5–95% non-condensing
• Weight: ~4.6 kg (10 lbs)
• Features: Smart Motor Technology (onboard memory for auto-identification), rare-earth magnets, UL/CSA certified
• Applications: Packaging, automotive, high-performance motion systems

** New (S2) - All S2 designated products are new, never used items that will have been repackaged in Service-Asia or custom packaging. These surplus items may not come with manuals or other accessories that would normally be supplied when buying factory new and may be older date codes, firmware, series or style and may sometimes show signs of shelf wear. When purchasing S2 products, please verify series or firmware if applicable. Units will be tested prior to dispatch where necessary.
