BN20-11RZ-M16

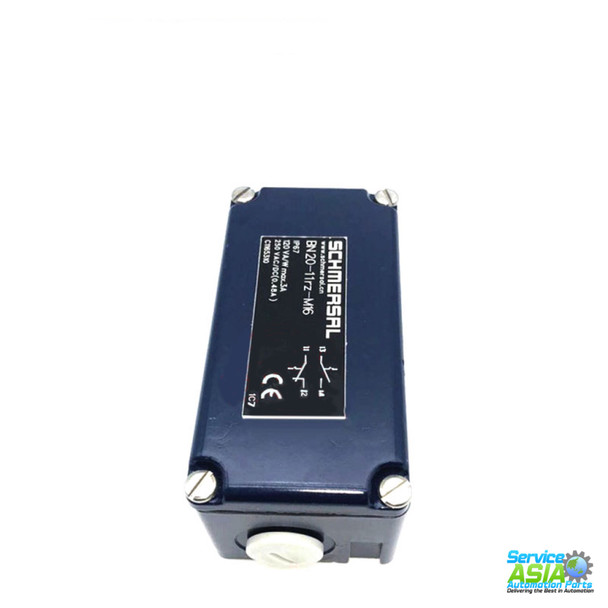

BN20-11RZ-M16 by Schmersal MAGNETIC SWITCH 3AMP 120-250VAC safety-rated magnetic reed switch designed for non-contact monitoring of machine guards and protective covers in industrial environments. Featuring two reed contact outputs, a rugged aluminium housing, and up to 50 mm operating distance, it provides long service life and high resistance to vibration and harsh conditions.

       Specifications:

• Switch principle: Magnetic (reed contact), non-contact activation

• Contacts: Two bistable contacts (1 NO + 1 NC)

• Switching distance: 5…50 mm depending on actuator magnet used

• Maximum switching voltage: 250 V AC/DC

• Maximum switching current: 3 A

• Max switching capacity: 120 VA / W

• Switching frequency: Up to ~1,080,000 operations per hour

• Mechanical lifespan: Minimum 1×10⁹ switching cycles

• Operating speed: Up to 18 m/s

• Repeat accuracy: ±0.3 mm

• Body material: Aluminium housing; active area metal-film coated

• Connection type: Screw terminals (M16 × 1.5)

• Ingress protection: IP67 (sealed against dust and water ingress)

• Dimensions (L × W × H): 47 × 104 × 52 mm

• Weight: Approximately 298 g (some distributor listings note ~300 g)

• Temperature range: –25 °C to +90 °C

• Vibration resistance: 50 g (sine wave)

• Compliance & standards: EN IEC 60947‑5‑1; UL c‑ULus General Purpose

• Actuator compatibility: BP series magnets (e.g. BP 10S, 20S, 31S; polarity-coded S/N)

** New - These products are new in box, sealed where applicable. Units are covered by 12 month conditional warranty
