1FK7086-7AF71-1FH2 New (S2), See Description

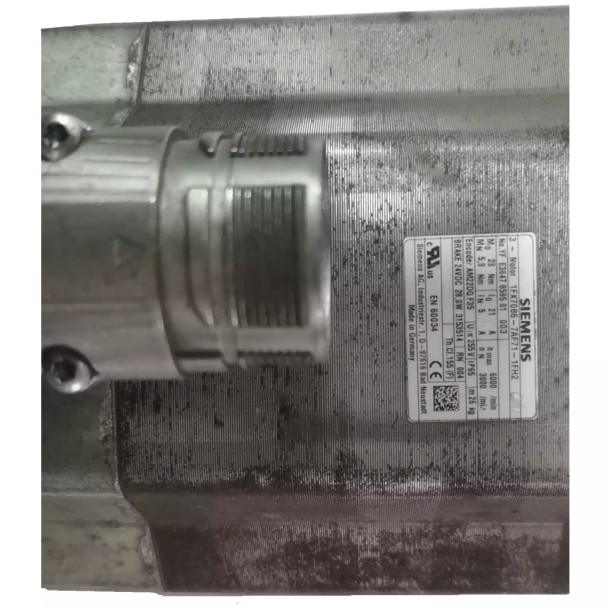

SIEMENS 1FK7086-7AF71-1FH2 SIMOTICS S-1FK7 High Dynamic synchronous servo motor designed for high-performance motion control in industrial applications such as CNC machinery, robotics, and automation systems. It features permanent-magnet technology with rare-earth magnets for superior overload capability and low inertia, ensuring rapid dynamic response. The motor includes a DRIVE-CLiQ interface for seamless integration with Siemens SINAMICS S120 drives and a built-in holding brake for static positioning

• Type: Permanent-magnet synchronous servo motor
• Rated Power: 3.77 kW (5.06 HP)
• Rated Torque: 18 Nm (100K temperature rise)
• Maximum Torque: 28 Nm
• Rated Speed: 3000 RPM
• Voltage: 600 V DC link
• Cooling: Natural convection (non-ventilated)
• Feedback: Absolute encoder, 2048 pulses/rev (10-bit single-turn, 22-bit total with DRIVE-CLiQ)
• Performance Reduction: 10% due to absolute encoder
• Shaft: Plain, tolerance N
• Holding Brake: Included
• Protection: IP65 (IP67 at drive-end flange)
• Mounting: IM B5 (V1, V3 compatible)
• Connector: Power/signal plug, rotatable by 270°
• Weight: ~26 kg
• Ambient Temperature: -15°C to +40°C (operation), -20°C to +70°C (storage)
• Standards: IEC/EN 60034-1, 60034-5, 60034-7
• Noise Emission: ≤70 dB(A) at rated speed

** New (S2) - All S2 designated products are new, never used items that will have been repackaged in Service-Asia or custom packaging. These surplus items may not come with manuals or other accessories that would normally be supplied when buying factory new and may be older date codes, firmware, series or style and may show shelf wear. When purchasing S2 products, please verify series or firmware if applicable. Units will be tested prior to dispatch where necessary.
